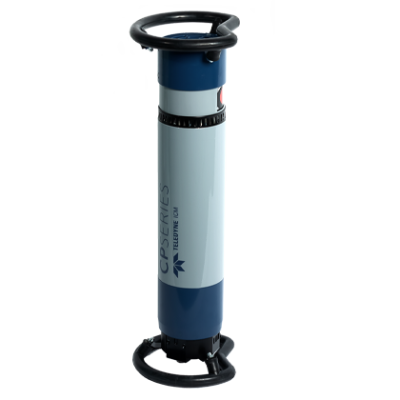

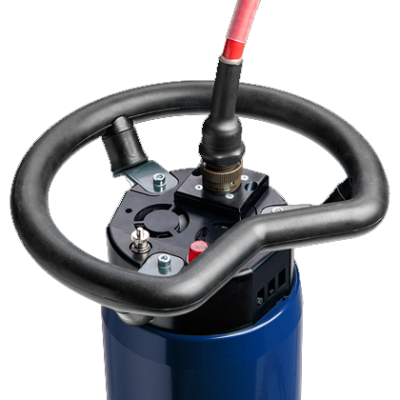

CP225D CONSTANT POTENTIAL GENERATOR POWER SUPPLY MAINS
BEST EVER DESIGN

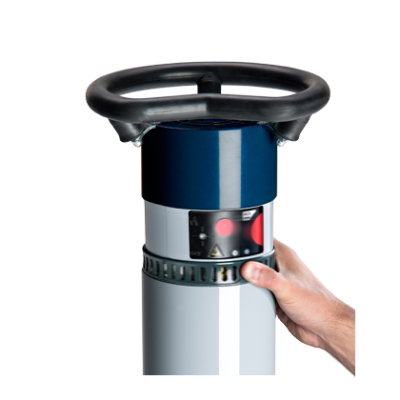

Supplemental to its outstanding penetration capacity (up to 47 mm for steel in just 10 minutes), the CP225D includes a built-in multiple X-Ray output carrousel that features a Beryllium window for the inspection of lighter alloys such as aluminum and carbon fiber.
PRODUCT INFORMATION
DESCRIPTION
Brochure
| Radiation geometry | - | Directional |
| Output voltage range | kV | 10 to 225 |
| Tube current range | mA | 1 to 10 |
| Tube current at full output | mA | 4.0 |
| Max. power at the anode | W | 900 |
| Constant power mode | - | Yes |
| Working cycle at 30°C (*) | % | 100 |
| Steel penetration (**) | mm | 47 |
| Weight | Kg | 14.7 |
| Overall dimensions | mm | Ø 140 x 725 |
| Leakage dose at 1 m at full output | mSv/h | < 2.0 |
| Optical focal spot (EN12543) | mm | 3.0 (~1.5 IEC 336) |
| Max. useful angle | ° | 60 x 40 elliptical |
| Inherent filtration | mm Be | 0.8 (Be Window) |
| Waterproof level | - | IP65 |
| Operating temperature | °C | -30 to +60 |
| Storage temperature | °C | -40 to +70 |
| Built-in carrousel featuring 5 outputs | - | Yes |
| Guard rings | - | 2 |
