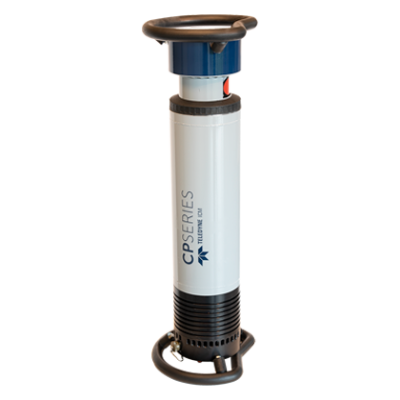

CP300DS CONSTANT POTENTIAL GENERATOR SMALL FOCAL SPOT
IDEAL FOR DIGITAL RADIOGRAPHY
Like the CP200DS, the CP300DS is the perfect tool for digital radiography. Its small focal spot generates sharper and clearer images which will enable you to accurately detect the slightest defect during your NDT inspections.
PRODUCT INFORMATION
DESCRIPTION
| Radiation geometry | - | Directional |
| Output voltage range | kV | 30 to 300 |
| Tube current range | mA | 0.5 to 6 |
| Tube current at full output | mA | 3 |
| Max. power at the anode | W | 900 |
| Constant power mode | - | Yes |
| Working cycle at 30°C (*) | % | 100 |
| Steel penetration (**) | mm / in | 66 / 2.6 |
| Weight | Kg / lbs | 29 / 63.93 |
| Overall dimensions | mm / in | Ø 180 x 837 / 7.1 x 33 |
| Leakage dose at 1 m at full output | mSv/h | < 5.0 |
| Optical focal spot (EN12543) | mm | 1 / 0.04 |
| Max. useful angle | ° | 60 x 40 elliptical |
| Inherent filtration | mm / in | 0.8 / 0.03 (Be window) |
| Waterproof level | - | IP65 |
| Operating temperature | °C / °F | -30 to +60 / -22 to +140 |
| Storage temperature | °C / °F | -40 to +70 / -40 to +158 |

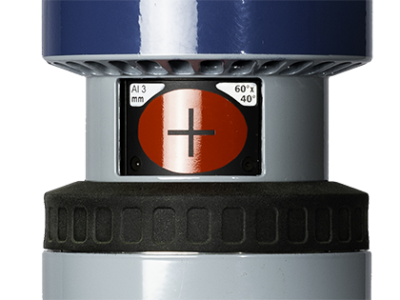

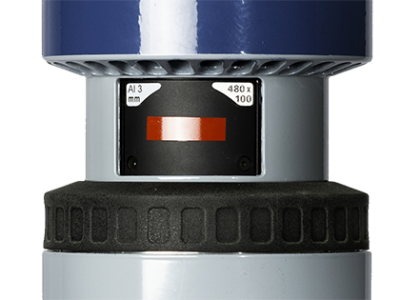

| Built-in carrousel featuring 5 outputs | - | Yes |
| Guard rings | - | 2 |
